THE DIFFERENCE A COATING MAKES

OUR COATING OPTIONS EXPLAINED

We offer our roof sheets in a wide range of coatings and colours to match aesthetics as well as budget. This is sometimes confusing, so here you can find an explanation with all the details.

Please take into account colouration may differ slightly depending on coating type and lighting.



THESE ARE THE AVAILABLE COATING OPTIONS:

THYSSENKRUPP PLADUR®

ThyssenKrupp PLADUR®

Available in MAT*(Wrinkle Mat) or Glossy*(Ral Premium)

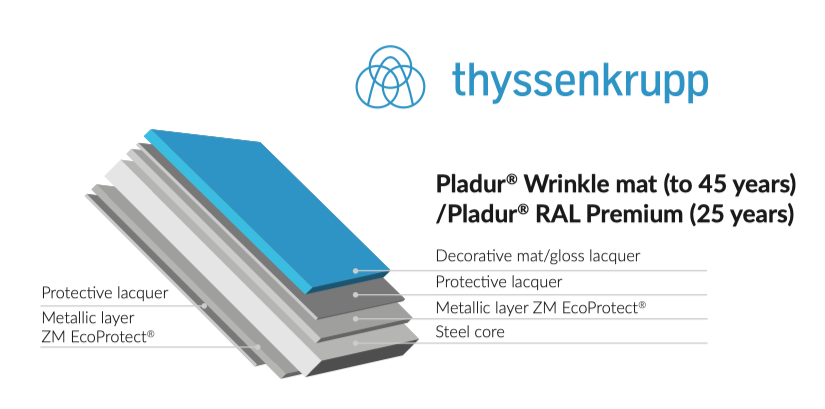

Thick-grain, double-layer coating system, with colours according to well-known patterns and min. coat thickness 35 microns. The sheets meet the requirements of class A2 in accordance with the Commission Decision 96/603/EC on fire protection and may be used in the corrosion category C4 according to the standard
EN ISO 12944-2.

We give up to 45 years warranty with our THYSSENKRUPP Pladur®Wrinkle mat and 25 years with PLADUR®Ral Premium Panels.

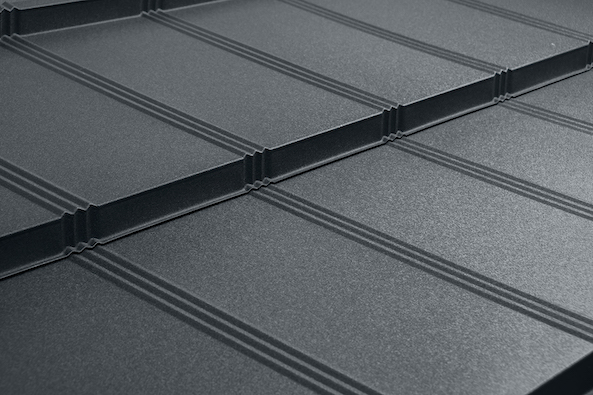

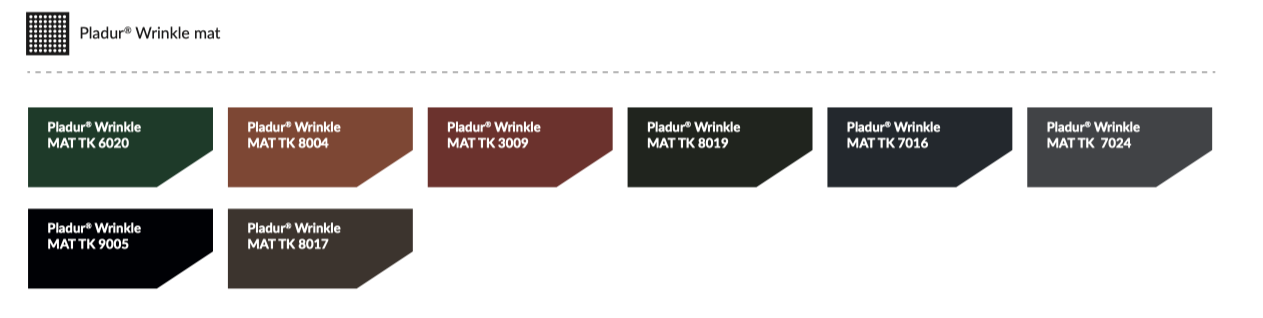

PLADUR®WRINKLE MAT

Colour options

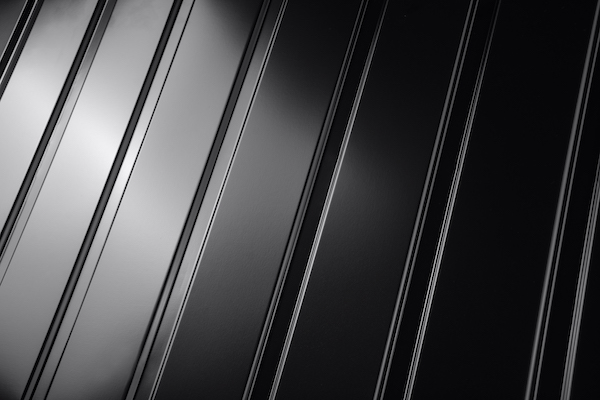

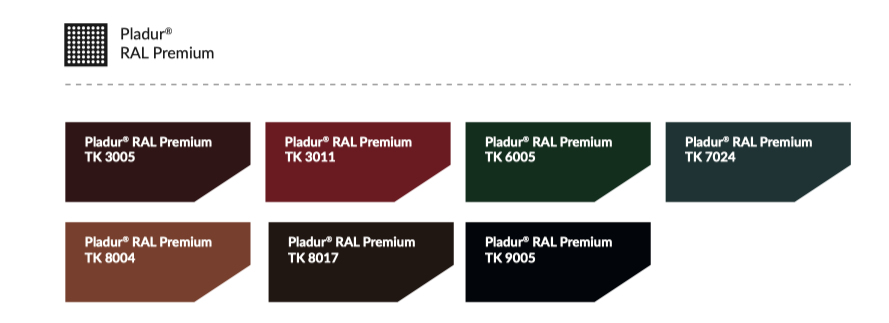

PLADUR®RAL PREMIUM

Colour options

ThyssenKrupp PLADUR® Wrinkle Mat Plus

Longest warranty on the market

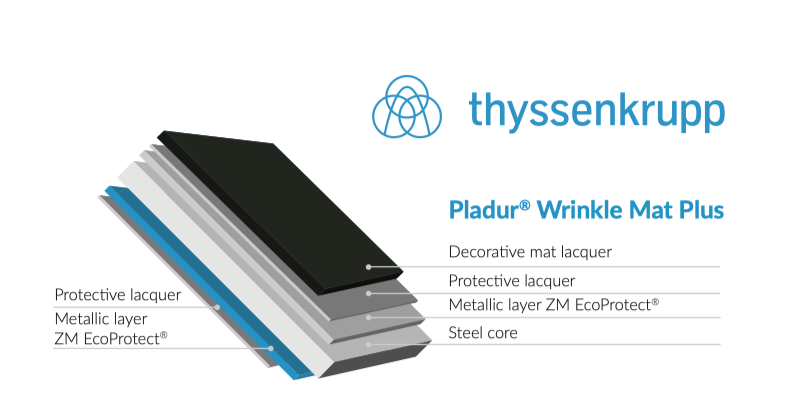

Coarse-grained, 2-layer coating system, in colours according to known colour schemes, with layer thickness of min. 50 microns.

PLADUR® Wrinkle mat plus

Our longest warranty. This coating will probably survive most of us.

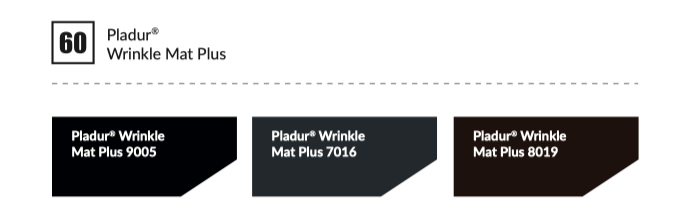

PLADUR®WRINKLE MAT PLUS

Colour options

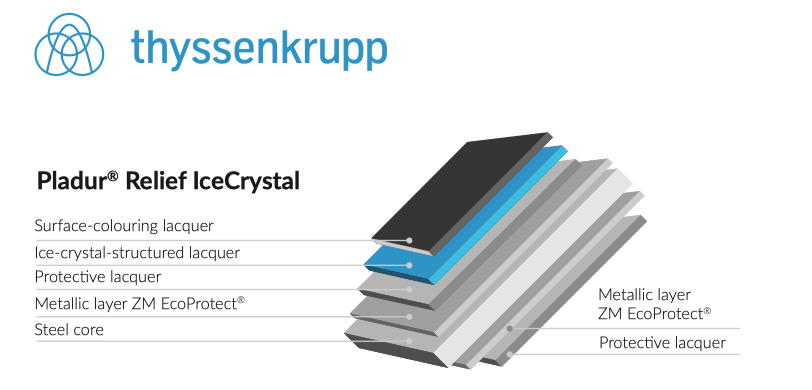

PLADUR® ICE CRYSTAL

Coating structure imitating patterns of frost



Sheets with a proprietary surface structure imitating patterns of frost, triple-layer coating system, min. coat thickness 36 microns. The sheets meet the requirements of class A2 in accordance with the Commission Decision 96/603/EC on fire protection and may be used in the corrosion category C4 according to the standard EN ISO 12944-2.

PLADUR® ICE CRYSTAL

Warranty

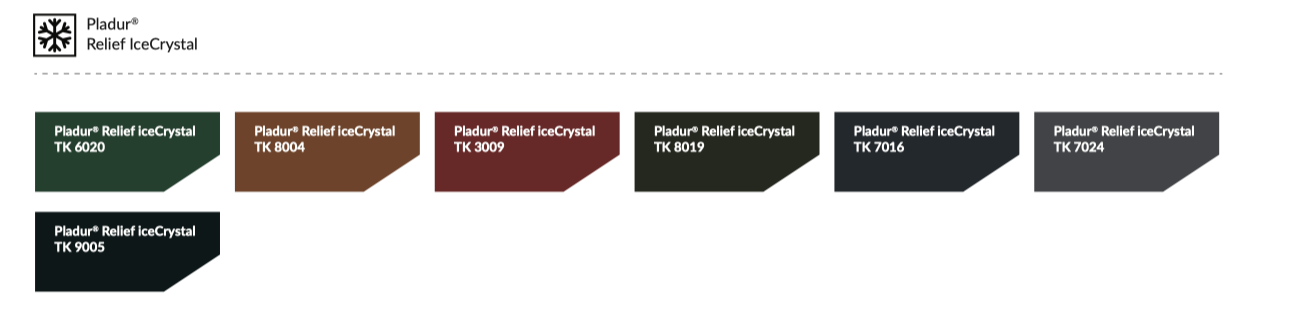

PLADUR®ICE CRYSTAL

Colour options

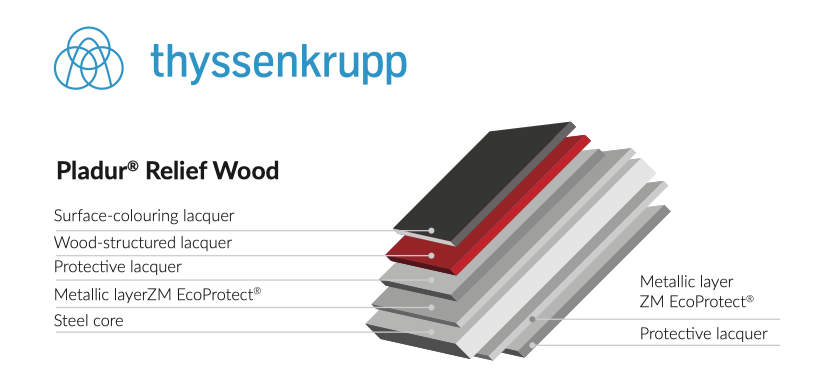

PLADUR® RELIEF WOOD

Wood-like designed coating

Sheets with a proprietary surface structure imitating wood, triple-layer coating system, min. coat thickness 36 microns. The sheets meet the requirements of class A2 in accordance with the Commission Decision 96/603/EC on fire protection and may be used in the corrosion category C4 according to the standard EN ISO 12944-2.

PLADUR® RELIEF WOOD

Warranty

PLADUR®RELIEF WOOD

Colour options

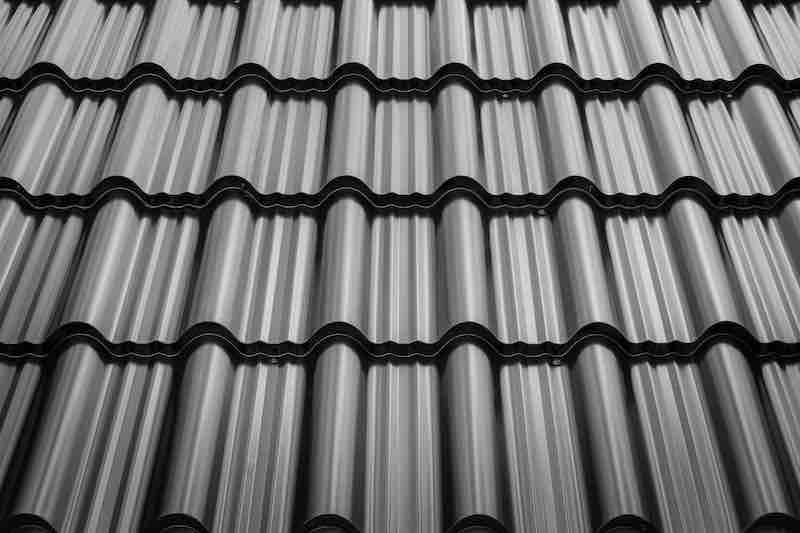

SUPERIOR HB®

SUPERIOR HB®

Smooth Polyester surface

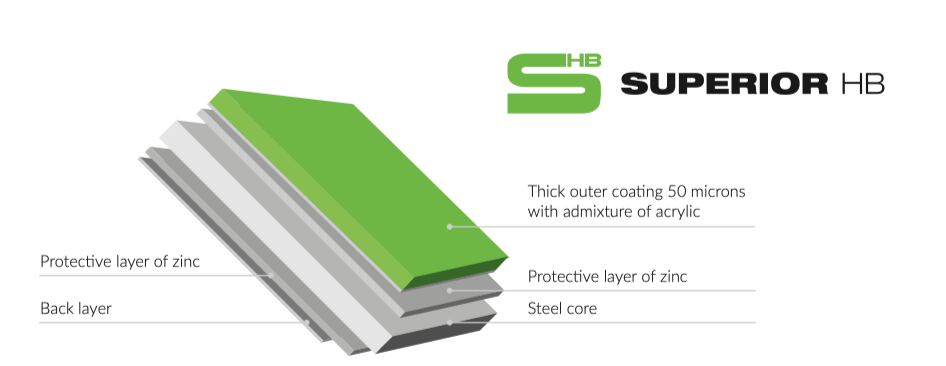

SUPERIOR HB – is a ground-breaking alternative for a smooth polyester surface. Thanks to an addition of acrylic compounds, the coat texture is slightly grained and it reflects light with a flickering effect. The acrylic additive additionally hardens the paint surface and ensures higher resistance to scratching. Lacquered sheets with metallic coating SUPERIOR HB meet the requirements of class A1 in accordance with the Commission Decision 96/603/EC on fire protection. The products with SUPERIOR HB coating system may be used in the corrosion category C4 according to the standard EN ISO 12944-2.

SUPERIOR HB®

Warranty

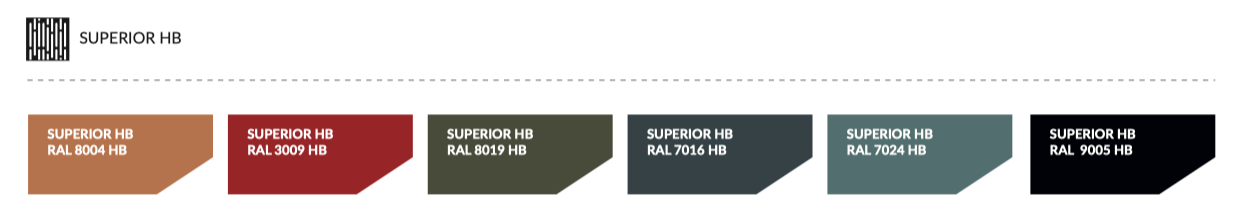

SUPERIOR HB®

Colour options

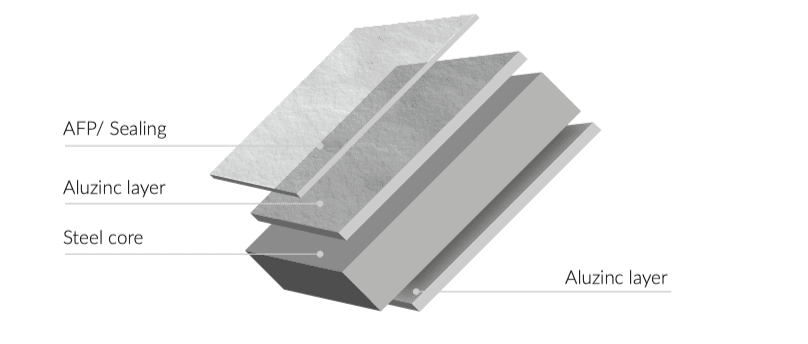

ALUZINC®

ALUZINC®

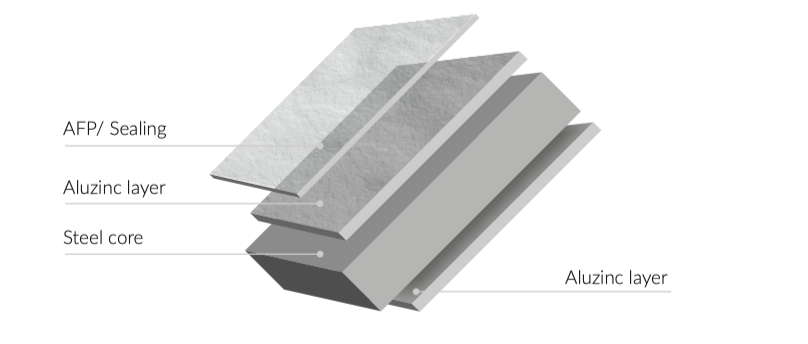

Accelor Mittal AZ185 – Steel coated each side in a corrosion resistant Aluminium and Zinc Alloy



AZ185 into the production of roofing! Aluzinc is a sheet covered on both sides with an aluminium
and zinc alloy in an electroplating process similar to hot galvanizing process. Thanks to the component proportions of Aluminium 55%, Zinc 43.4% and Silicon 1.6% our products are highly resistant to corrosion thanks to the synergy between the zinc cathodic protection and aluminium screening effect. For manufacturing processes Blachotrapez uses only Aluzinc of 185 g/m² (subject to 25 years of warranty). The sheets meet the requirements of class A1 in accordance with the Commission Decision 96/603/EC on fire protection and may be used in the corrosion category C4 according to the standard EN ISO 12944-2.

ALUZINC®

Warranty

ALUZINC®

Aluzinc is both a coating and a colour, therefore only a singular colour option is available.

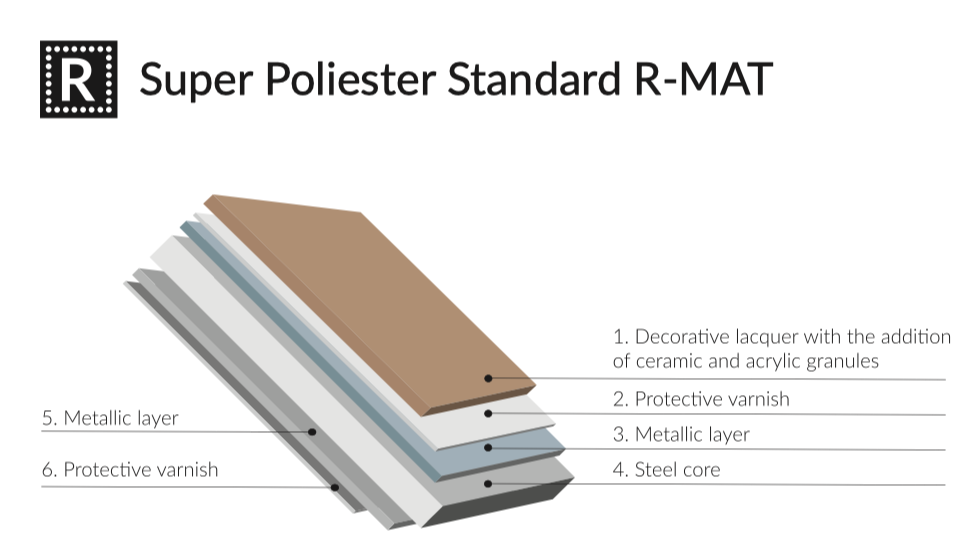

Super Poliester Standard R-MAT®

Coating providing high scratch resistance and UV stability

The applied lacquer is a combination of a thick primer and a super-polyester topcoat, with the addition of ceramic and acrylic granules. This guarantees very-good resistance to external weather conditions. The Super Poliester Standard R-MAT coating has been developed for roofs and facades installed in sunny locations and areas with large annual temperature fluctuations. The resistance of the Super Poliester Standard R-MAT coating to UV rays and aggressive weather conditions ensures high product quality, which will last for years. The Coated Super Poliester Standard R-MAT has:

>a semi-matte finish
>high scratch resistance
>very-good UV resistance
>very-good resistance to external weather conditions

an ideal choice for both roofs and façades mounted in locations exposed to sunlight and in areas experiencing high annual temperature differences.

Super Poliester Standard R-MAT®

Warranty

Super Poliester Standard R-MAT®

Colour options

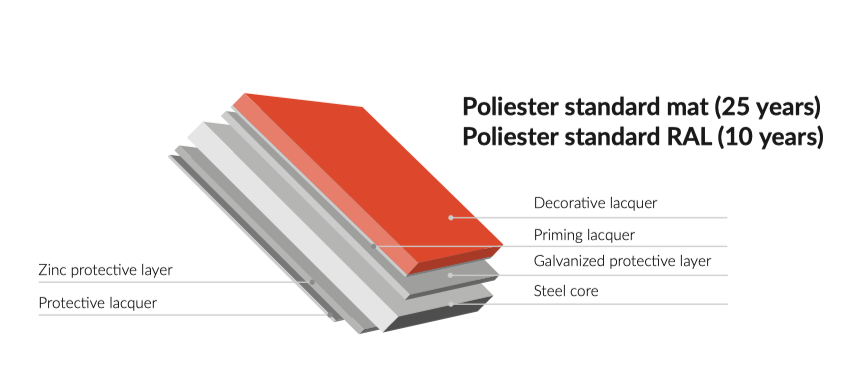

Poliester standard mat ®(25 years) Poliester standard RAL ®(10 years)

Poliester with mat or glossy finishes.



These coated sheets are the most popular option for metal roofing. Currently, sheets that are double-side galvanised with anti-corrosive layer, priming or organic paint are used. The top layer provides the colour and texture, as well as protects against outdoor conditions.

Poliester standard mat ®(25 years) Poliester standard RAL ®(10 years)

Warranty

Poliester standard mat ®(25 years) Poliester standard RAL ®(10 years)

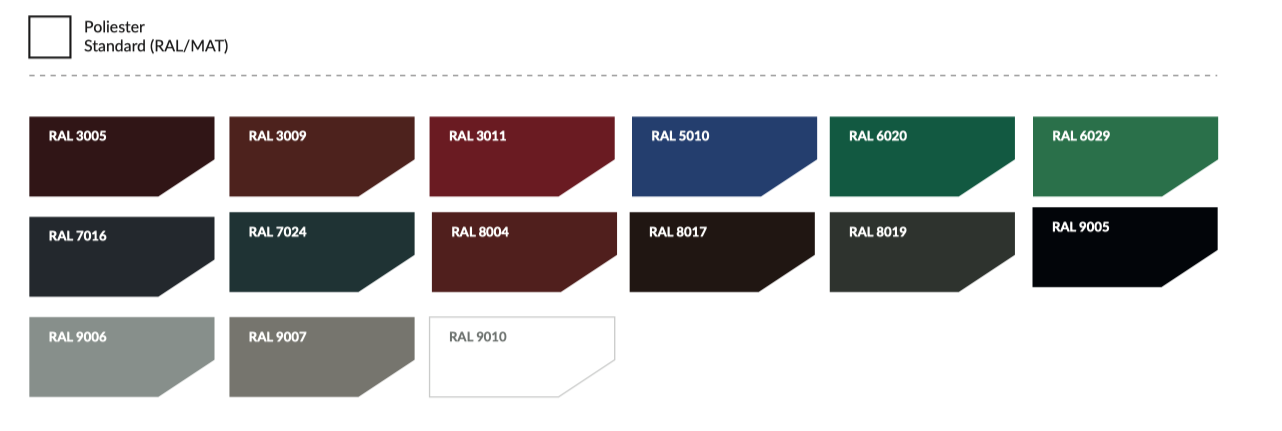

Colour options

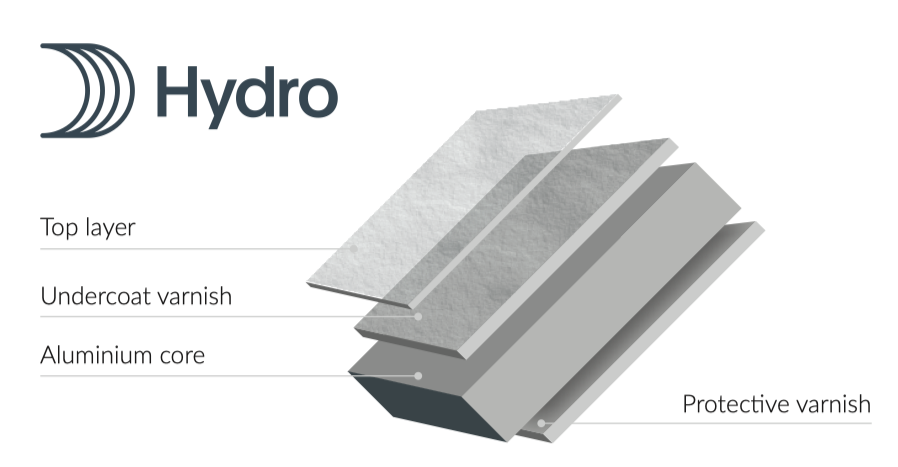

Aluminium STUCCO MAT Corase®

Also available as a Aluminium Panel without the Stucco texture

This material is extremely light at density of only 2.7g/cm3. This facilitates designing a lighter building structure, so you can save on construction costs.

The material is 100% renewable and recyclable, which makes it eco-friendly. It does not lose its own original properties during this process.

Heavy duty and durable. The tensile strength of currently produced aluminium alloys is comparable to steel. Aluminium is resistant to harsh weather conditions, making it a natural choice in many applications.

The plasticity of the material makes it soft and easy to process for a roofer. This feature means that almost any product can be formed from aluminium.

Corrosion-resistant aluminium automatically self-covers with a thin layer of oxygen, rebuilding itself, which prevents further oxidation.



Aluminium STUCCO MAT Corase®



Warranty

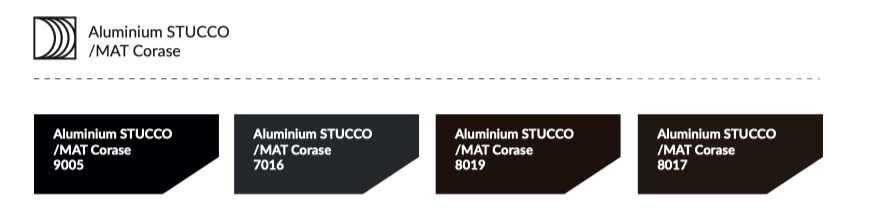

Aluminium STUCCO MAT Corase®

Colour options

POLIESTER STANDARD INNOVA®

Polyester Standard matt INNOVA – coated sheets commonly used on roofs are characterized by a metallic coating on both sides, which ensures effective anti-corrosion protection. The surface is covered with a layer of primer and organic paint. The final coating gives color and texture and protects against external conditions.









POLIESTER STANDARD INNOVA®

Warranty










POLIESTER STANDARD INNOVA®

Colour options
