Custom FLASHING

We can manufacture flashings in any shape necessary. These can be provided in the same colour and coating as the roof panels. We also provide flashings and trims for any of your other projects.

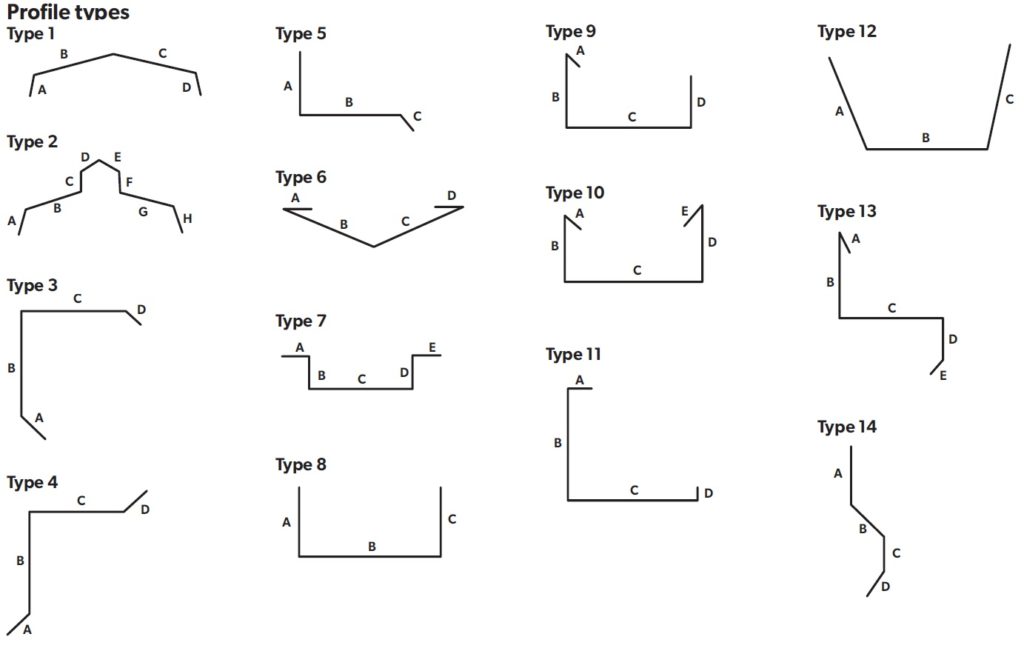

Please see the pictogram for examples of custom flashing shapes. If you require bespoke flashings please send us request and specify on what side you need the coating, colour, dimensions and angles.

This can be just a photo of a hand drawing and we will take it from there. We produce flashings in a standard 2 meters length and up to 1.25 meters wide.

THESE ARE EXAMPLES OF SHAPES

HOW TO ORDER CUSTOM FLASHINGS

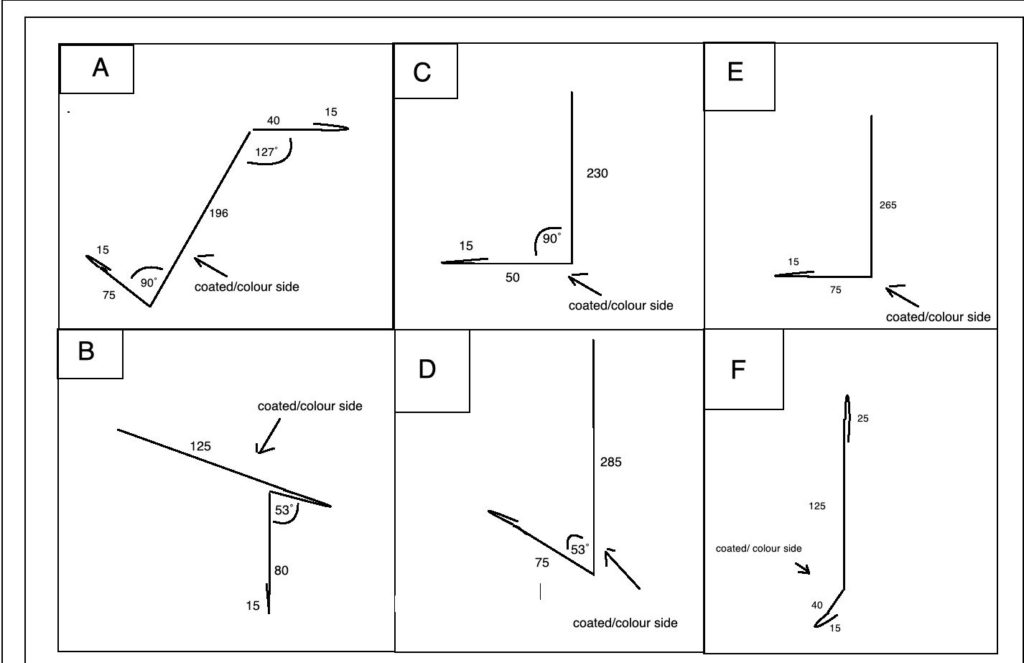

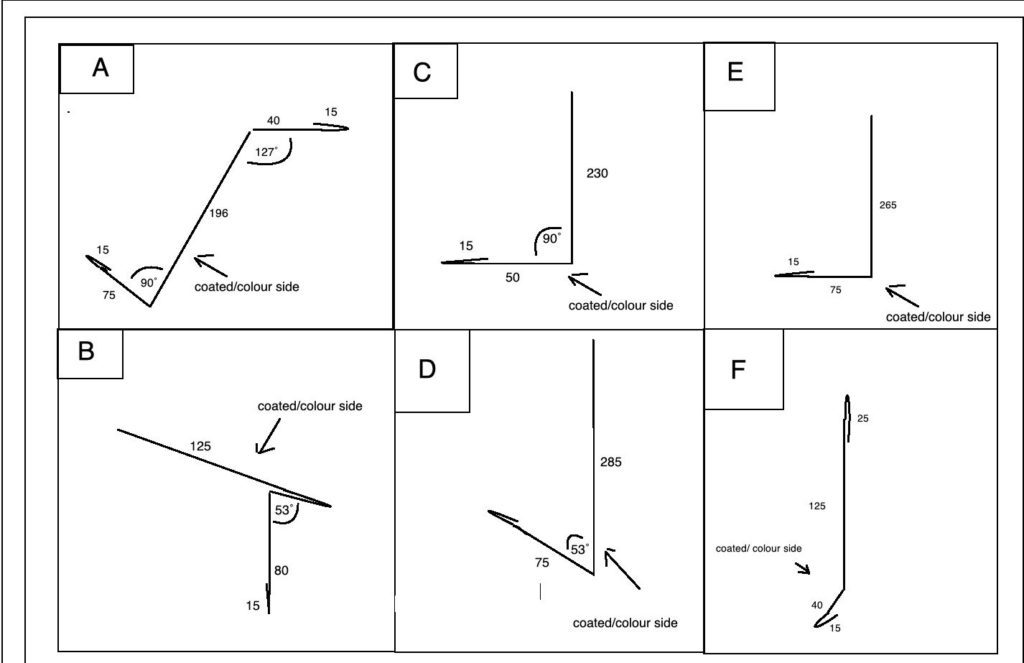

You can send us a simple bending schedule via email or the contact form. This bending schedule does not need to be professionally drawn, a handdrawn sketch will be sufficient for us. Please include as many required measurements as you have.

The drawing should include :

  • Lengths of each section (in mm)
  • Angles of the bend
  • Side of the coating/colour
  • Where you want a hem (recommended – hem is typically 10mm)

ROOFLIGHTS AND CHIMNEY FLASHINGS

Sometimes customers require custom flashings that allow for drainage around a roof opening like a chimney or a rooflight.

With rooflights, often the manufacturer has a matching flashing that will fit precisely their range. However, sometimes smaller manufacturers do not have an “off the shelf” solution for this problem.

We can manufacture customised flashings with your measurements designed perfectly fit a chimney or rooflight.

The Flashing will come in the same colour as your roof/window.

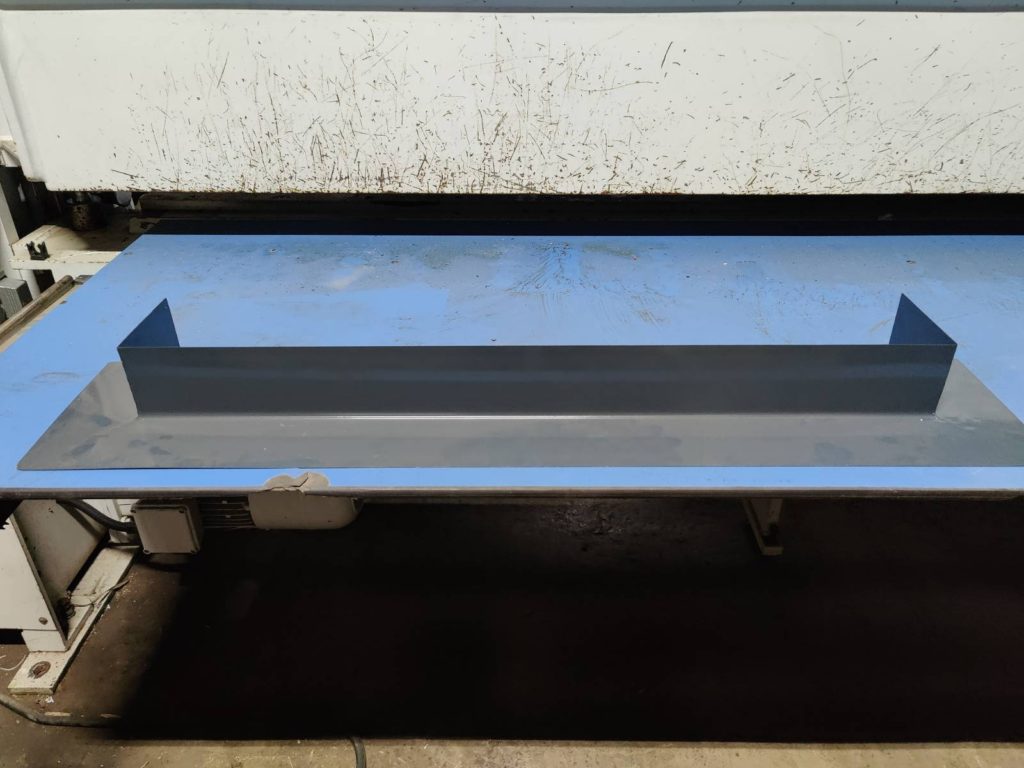

As a rough guidance, a top-flashing for a 1m wide rooflight or chimney (similar to the sample in the picture) would be £60.00/horizontal meter.

MEASUREMENTS NEEDED FROM YOU

In order for us to produce the right flashing for your situation, we will need detailed measurements for the part.

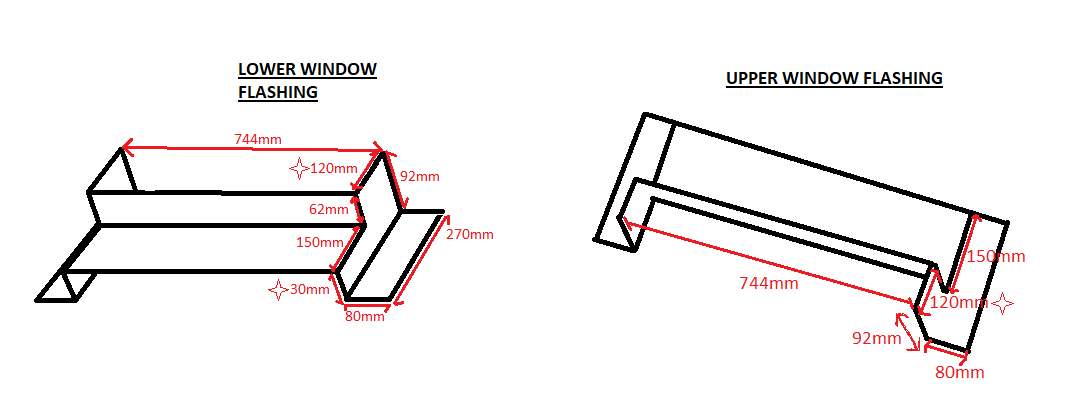

See Diagram above for example dimensions (units: mm). These that can be customised to preference. Dimensions marked with stars are universal requirements for a majority of our standing seem roofing systems.
