Understand when to vent your roof, when not to, and how to execute each approach successfully



So much information has been devoted to the subject of roof venting that its easy to become confused and to lose focus. So I’ll start by saying something that might sound controversial, but really isnt: A vented attic, where insulation is placed on an air-sealed attic floor, is one of the most underappreciated building assemblies that we have in the history of building science.
Its hard to screw up this approach. A vented attic works in hot climates, mixed climates, and cold climates. It works in the Arctic and in the Amazon. It works absolutely everywhere
—whe
n executed properly.

Unfortunately, we manage to screw it up again and again, and a poorly constructed attic or roof assembly can lead to excessive energy losses, ice dams, mould, rot, and lots of unnecessary nightmares.
Here, I’ll explain how to construct a vented attic properly. I’ll also explain when it makes sense to move the thermal, moisture, and air-control layers to the roof plane, and how to detail vented and unvented roofs correctly.

Theory behind venting

The intent of roof venting varies depending on climate, but it is the same if you’re venting the entire attic or if you’re venting only the roof deck.
In a cold climate, the primary purpose of ventilation is to maintain a cold roof temperature to avoid ice dams created by melting snow and to vent any moisture that moves from the conditioned living space to the attic.
In a hot climate, the primary purpose of ventilation is to expel solar-heated hot air from the attic or roof to reduce the buildings cooling load and to relieve the strain on air-conditioning systems.
In mixed climates, ventilation serves either role, depending on the season.

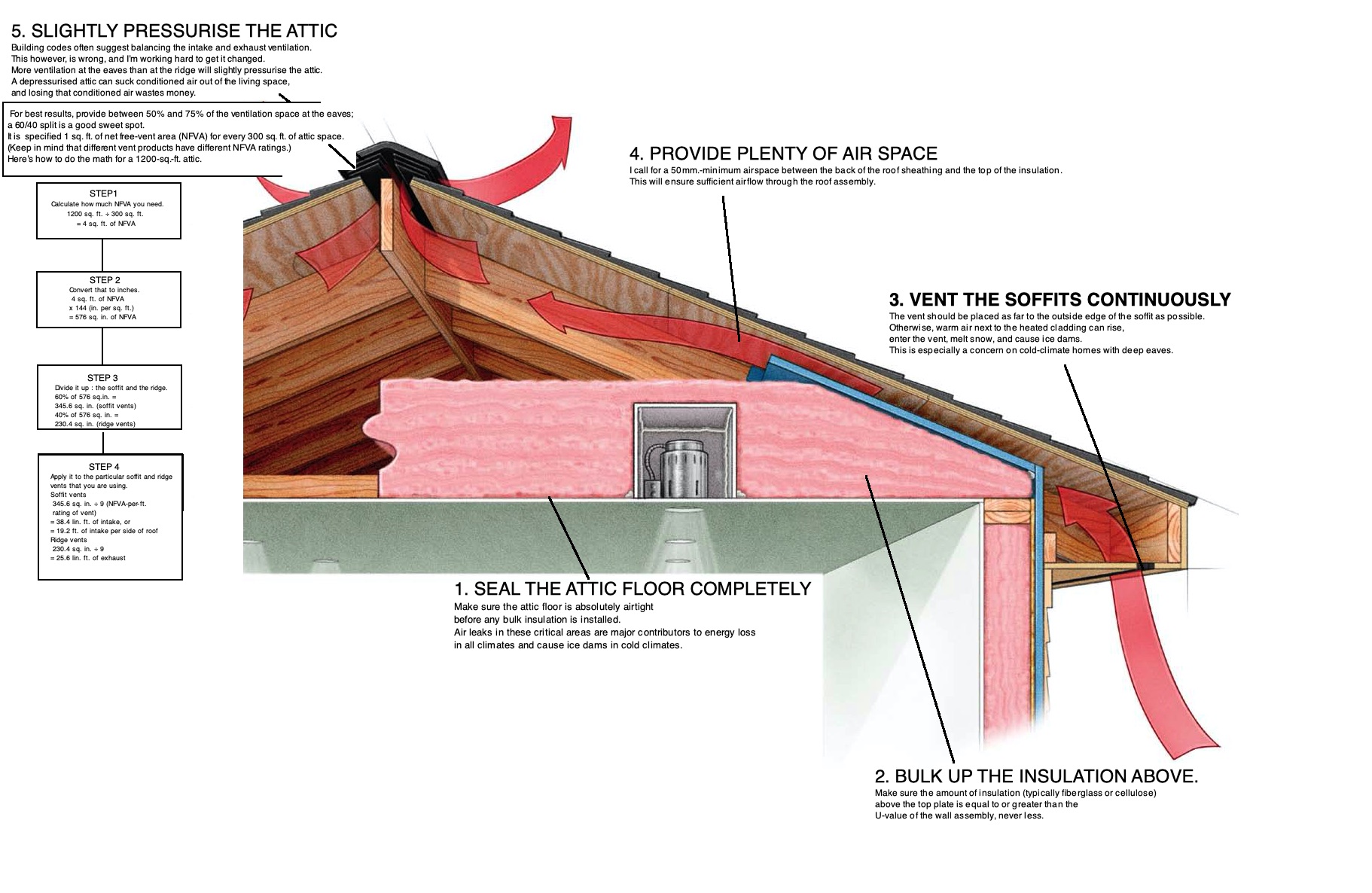

full diagram

Vent the attic

A key benefit of venting the attic is that the approach is the same regardless of how creative your architect got with the roof. Because the roof isnt in play here, it doesnt matter how many hips, valleys, dormers, or gables there are. Its also easier and often less expensive to pile on Earthwool, Fibreglass  or cellulose insulation at the attic floor to hit target U values than it is to achieve a comparable U-value in the roof plane.
The success of this approach hinges on the ceiling of the top level of the house being absolutely airtight before any insulation is installed.
Its also important to ensure that there isnt anything in the attic except lots of insulation and air—not the Christmas decorations, not the tuxedo you wore on your wedding day, nothing. Attic space can be used for storage, but only if you build an elevated platform above the insulation. Otherwise, the insulation gets compressed or kicked around, which diminishes its UvalueAlso, attic access hatches are notoriously leaky.
You can build an airtight entry to the attic, but you should know that the more it is used, the leakier it gets.

How do people get this simple approach wrong? They dont follow the rules. They punch a bunch of holes in the ceiling, they fill the holes with recessed lights that leak air, and they stuff mechanical systems with air handlers and a serpentine array of ductwork in the attic. The air leakage from these holes and systems is a major cause of ice dams in cold climates and a major cause of humidity problems in hot climates. Its also an unbelievable energy waste no matter where you live.

Dont think you can get away with putting ductwork in an unconditioned attic just because you sealed and insulated it. Duct sealing is faith based work. You can only hope you’re doing a good enough job.
Even when you’re really diligent about air sealing, you can take a system with 20% leakage and bring it down to maybe 5% leakage, and thats still not good enough.
With regard to recessed lights and other ceiling penetrations, it would be great if we could rely on the builder to air-seal all these areas. Unfortunately, we cant be sure the builder will air seal well or even air seal at all. So we have to take some of the responsibility out of the builders hands and think of other options.

In a situation where mechanical systems or ductwork has to be in the attic space or when there are lots of penetrations in the ceiling below the attic, its best to bring the entire attic area inside the thermal envelope. This way, its not as big a deal if the ceiling leaks air or if the ducts are leaky and uninsulated.



Vent the roof deck

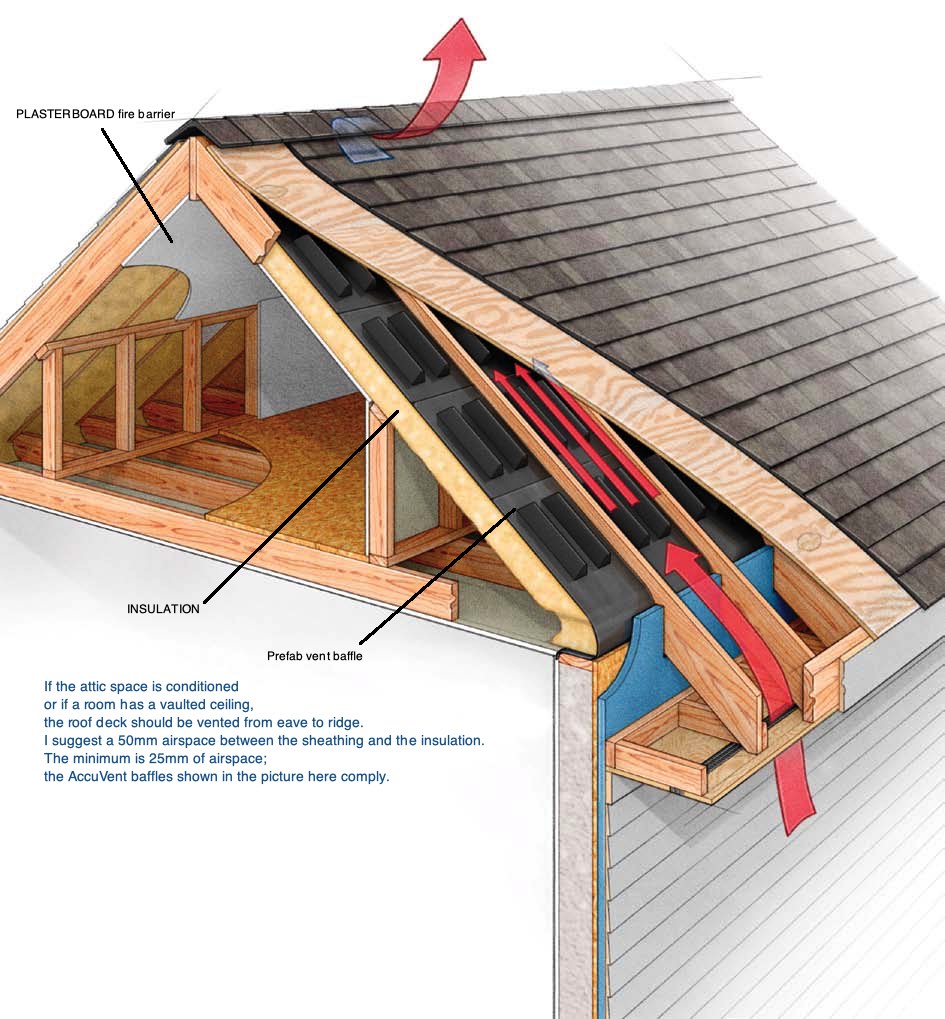

If the attic space is going to be conditioned, either for living or mechanical purposes, or if a home design calls for a vaulted ceiling, the roof deck above the space has to be vented continuously from the eave to the ridge. This is easy to accomplish in simply constructed roofs and difficult, if not impossible, to accomplish in roofs that have hips, valleys, dormers, or skylights that interrupt the rafter bays.

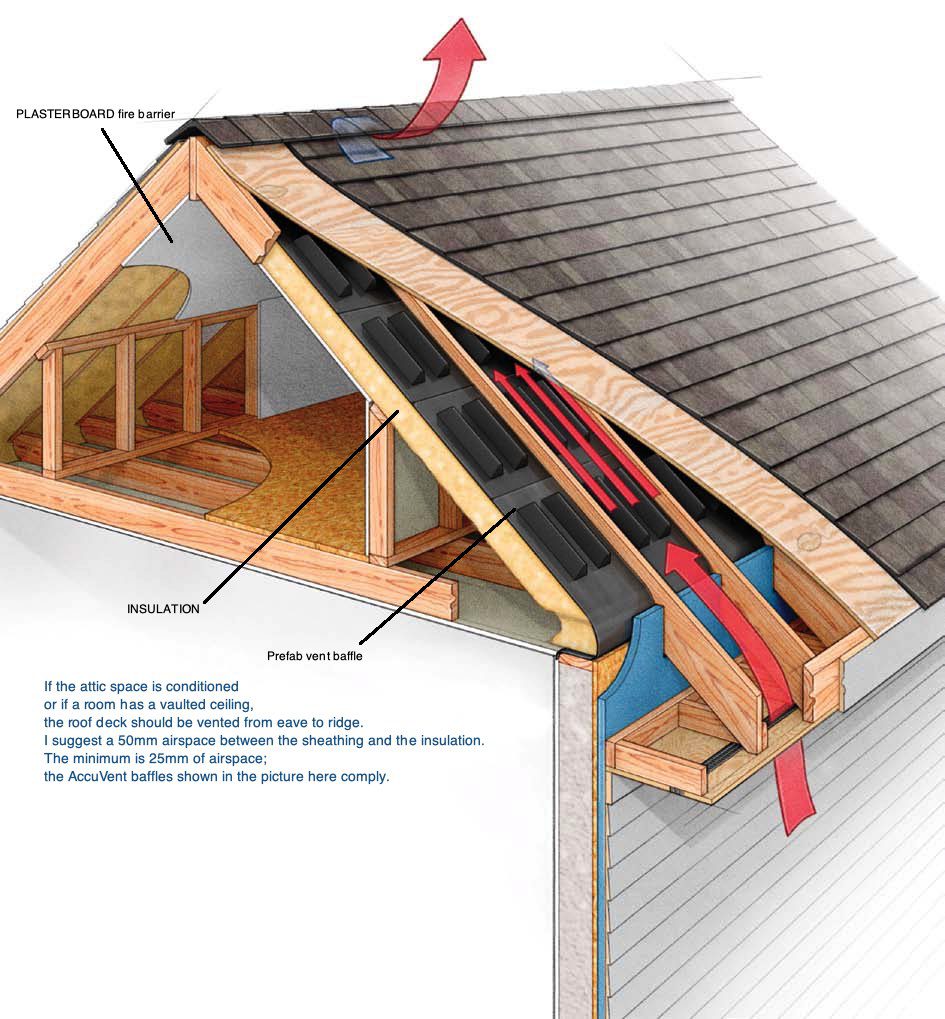

If you choose to vent the roof deck, then be serious about it and really vent it. The commonly used minimum of 25mm of airspace between the top of the insulation and the back of the roof sheathing is not enough. For best performance, the airspace in the vent chute should be a minimum of 50mm deep.
Unless you’re bulk-filling rafter bays between 2×10 or 2x8 rafters with closed cell spray foam, this approach will likely require you to fur out the rafters to accommodate additional insulation
in order t
o achieve desired U-values.
That can be a pain, but you wont run into the problems associated with having too little air circulating under the roof. To be sure your roof is getting enough ventilation, there are simple calculations that you can follow (see graphic above )

Beyond the decreased capacity for insulation when venting the roof deck, venting the roof deck or the attic has some other drawbacks worth considering. In cold climates, snow can enter the soffit and ridge vents, melt, and potentially cause rot.
Similarly, in coastal environments or in regions with lots of rain and wind, moisture can be forced into the vents and into the roof assembly.

If any of these issues are of concern, there is another option.

Create an unvented roof

Unvented assemblies work particularly well on complex roofs that would be difficult or impossible to vent properly or on roofs where it would be difficult to insulate properly if the roof were vented.
It should be noted, however, that in high-snow-load areas, you still need a vented over roof to deal with ice damming. In essence, you’re creating a hybrid vented/unvented roof system.

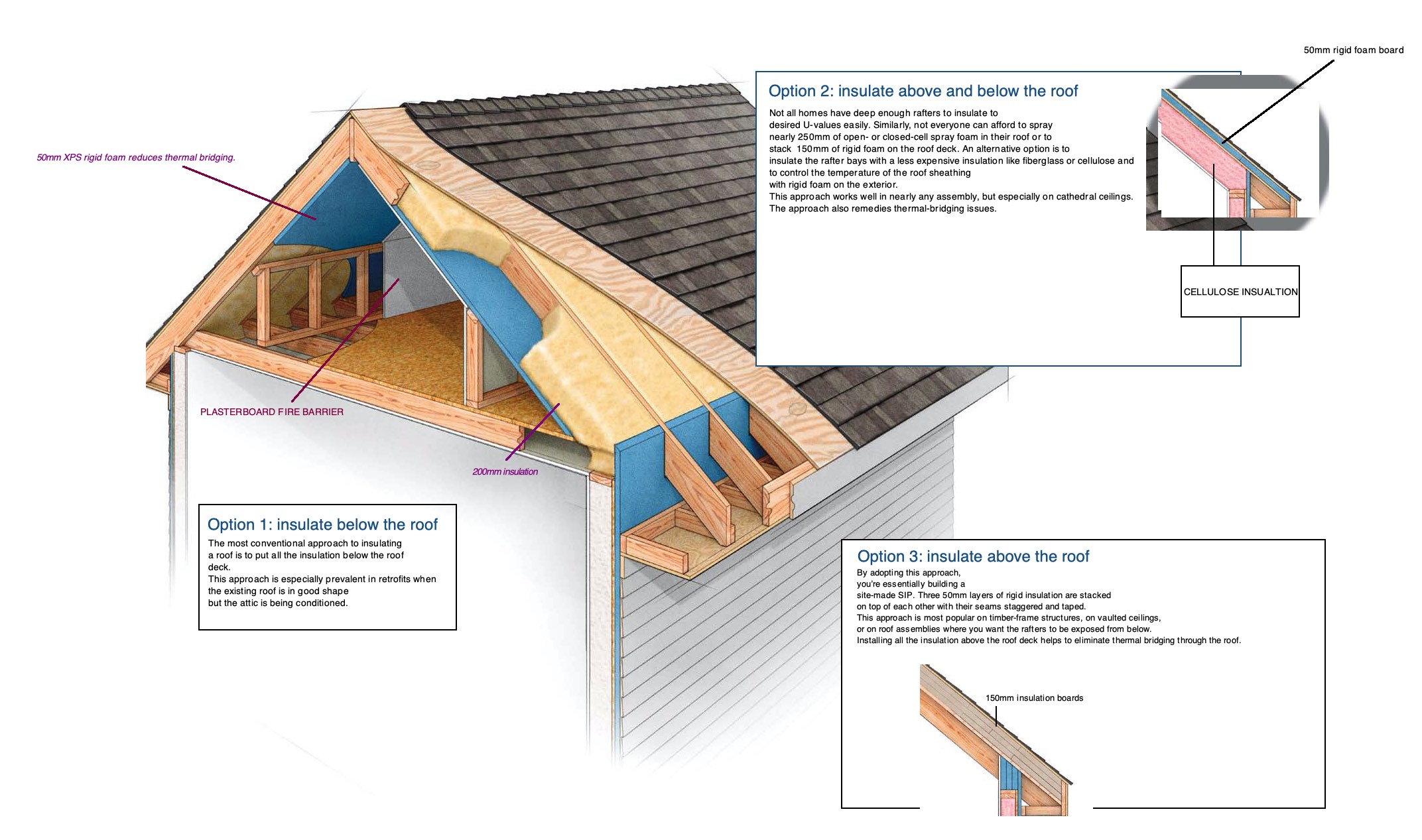

The goal in an unvented roof is to keep the roof deck—the principal condensing surface in roof assemblies—sufficiently warm through the year to prevent condensation from occurring. In most climates, builders have to insulate the roof sheathing to prevent condensation from occurring within the assembly.
Condensation control is most often accomplished by installing rigid foam above the roof deck or by installing air impermeable spray foam insulation directly against the underside of the roof deck.
Air-permeable insulation, such as fiberglass or cellulose, can also  be used under the roof deck as long as rigid foam is used above the roof sheathing.
Flash-andbatt (or flash-fill) assemblies are also allowed. Any of these approaches can adequately prevent condensation from occurring within the roof when the rigid foam or spray foam is installed at the appropriate thickness .

If you are spraying foam on the underside of the roof deck, be sure you’re using the right product. Closed-cell spray foam works in all climates, but especially well in climate zones 5 through 8, where high U-values are desired and where air impermeable insulation also must be a vapour retarder. Low density, open-cell foam is permissible, but in climate zones 5 and above, it has to be covered with a vapour-retarder coating, like rigid foam or painted drywall.

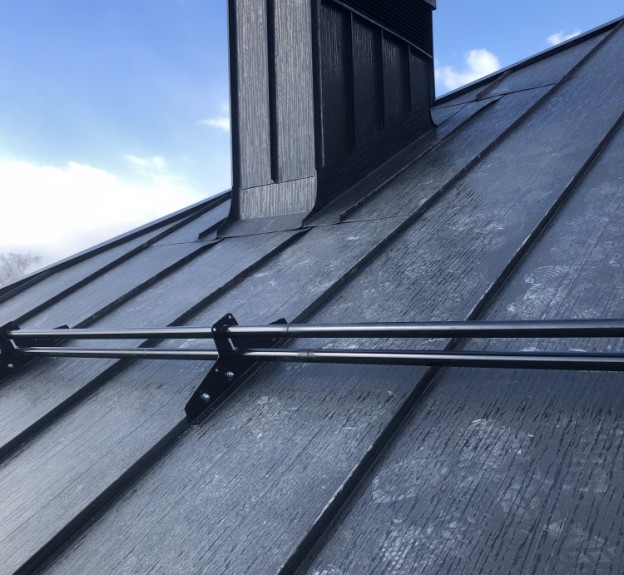

Also pay attention to roofing materials. Metal roofs require special attention when installed on unvented roof assemblies in marine climates due to inward vapour drive. To keep moisture out of the roof assembly, a metal roofing underlayment  must be installed under the sheets. Also, check to be sure that you are in compliance with the manufacturer warranties when installing metal sheets over an unvented roof .

You can vent the roof sheets  by battening , which will have the same effect but depending on roof pitch and sheets  chosen, may not be worth the extra expense.











EXTRA INFOS:



The success of a vented attic or roof deck relies on its airtightness. The space above the top plate of exterior walls—at the bottom of each rafter bayis especially important.

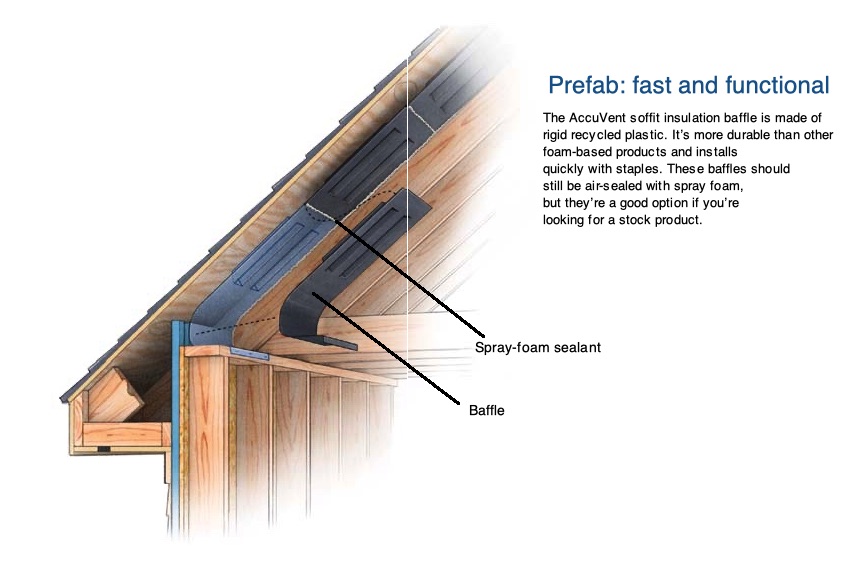

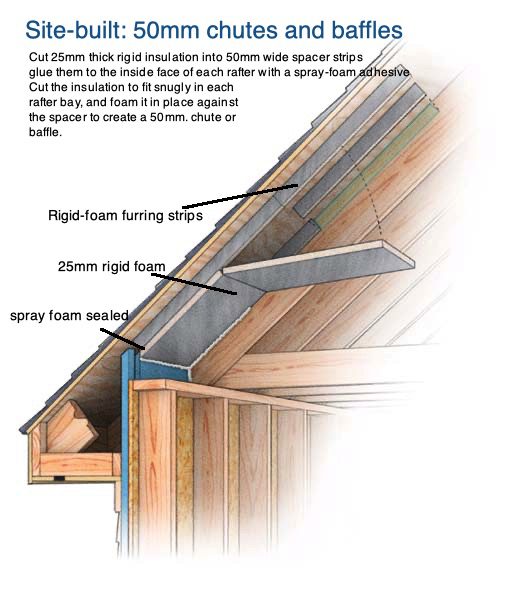

Baffles placed in this area channel intake air into either the attic space or vent chutes, and also prevent insulation from falling into the soffit and blocking airflow.
