AVAILABLE IN 2 DIFFERENT WIDTHS

The Terrano is available in 2 different widths and comes with our new rectangular click system and thew optional mini-wave and nano-wave technology that can make a lot of oil canning effects less visible.

Thanks to the quick and easy to install click system, our product is superior to traditional sheets with a double seam. Moreover, due to its improved rigidity it can be laid straight onto roof battens on top of a breathable membrane. Its versatility allows it to also be used as a wall cladding, acting as a unique facade finishing in horizontal or vertical alignment.
With our click system, panels can be fixed quickly and firmly without the need for additional brackets. Furthermore, due to the location of holes along the seam, the fixing screws are covered by the adjacent panel giving the system the classic look of a Standing Seam roof without visible fixings.



GIVING OUR CUSTOMERS A WIDER VARIETY

The Panel Terrano is an addition to our range of panels for customers that want the extra steps to minimise  oil canning

It comes in 2 options, either 316mm or 525mm widths.

As with all our other standing seam panels, the widest panels are the most cost effective option.

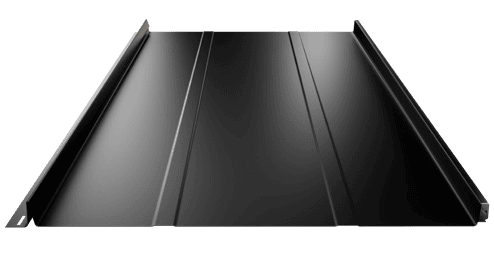

Terrano 525

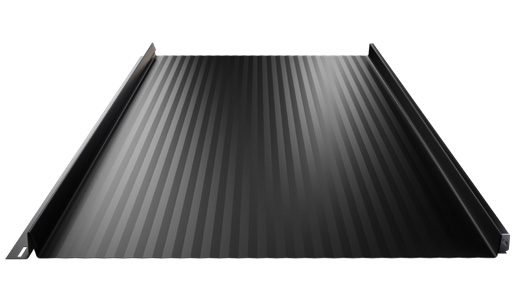

Our widest Terrano comes with either Nano or Mini waves and ribs

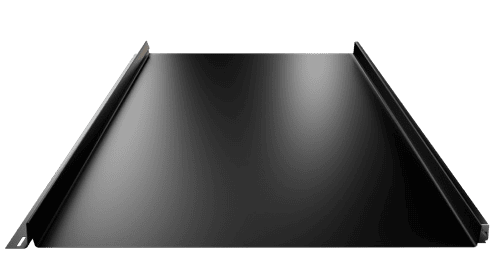

Terrano 316

narrower Terrano comes with either Nano or Mini waves

AVAILABLE COATINGS

RETRO 38 is available in those coatings and colours

TK MAT PLUS; ALUMINIUM

TK ICE CRYSTAL; TK WOOD;  SUPERIOR HB

TK MAT

TATA COLOURCOAT HPS200

POLIESTER R-MAT; ALUZINC(Galvanised); TK RAL

Poliester

Colours available: please see more details on coatings page

TECHNICAL DETAILS

  • WIDTHS TOTAL/COVERAGE:     525/495
  • SEAM HEIGHT : 30mm
  • MAX./MIN. LENGHTS: 8m / 1,4m
  • AVAILABLE OPTIONS: PRE-FORMED HEM, RIBS,Mini wave, NANO wave, IZO
  • THICKNESS:  0.5/ 0.6(ALUMINIUM)
  • WIDTHS TOTAL/COVERAGE:     316/281
  • SEAM HEIGHT : 30mm
  • MAX./MIN. LENGHTS: 8m / 1,4m
  • AVAILABLE OPTIONS: PRE-FORMED HEM, RIBS,Mini wave, NANO wave, IZO
  • THICKNESS:  0.5/ 0.6(ALUMINIUM)

Get in touch
